Vertical Transportation Single Cage 2000KG Building Site Hoist

Name: Vertical Transportation Single Cage 2000KG Building Site Hoist
Brand: KANGBO
Price: 1 USD

Brand Name : KANGBO

Model Number : Building site hoist SC200BG KP-B11 SC200/200BG KP-B12

Certification : TUV

Place of Origin : CHINA

MOQ : 1 set

Price : In US Dollar

Payment Terms : T/T, L/C

Supply Ability : 150 sets per month

Delivery Time : 30 Days

Packaging Details : Export package

name : Building Site Hoist

Application : Vertical Transportation

Design : Modular and According to European Standard

Production : Processed by CNC machines, Laser, Robots in assembly line.

Finishing : Sandblasting and Painted, Galvanised

Load : 2,000KG

Contact Now

Vertical Transportation Single Cage 2,000KG Building Site Hoist

Building Site Hoist Manufacturing Technique

1. Guide rail system
Guide rail system made of 20# steel that is 4.5mm thick.

2. Gear rack
The gear rack is made of 55# steel and its service life is more than 10 years.

3. Power system
The operating time of the construction hoist is 10 to 15 years.

4. Safety devices
a. Fall arrest device
b. Loading capacity limiter
c. Limit switch
d. Upper limit protection device
e. Lower limit protection device
f. Door limit protection device
g. Escaping window limit protection device
h. Bell warning device
i. Emergency stop protection device
j. Buffering protection device
k. Motor overload protector
l. Transformer short-circuit protection device
m. Phase sequence protection device

5. Cable
We employ genuine GB cable that is guaranteed on quality.

6. Electrical system
The main devices in the electrical system are all Name Brands, like Schneider, Siemens.
a. The fan installed helps dissipate the heat effectively.
b. With a time delay relay, the construction lift can stop smoothly and steadily.
c. Alarm bell informs users of the starting of the fall arrest device.
d. Failure warning light will send light signals when there is a failure of the motor or electrical system.

7. Protection fence
The outside fence and fence gate are built with plastic-sprayed perforated plate.

8. Additional scaling ladder
For each construction hoist, two scaling ladders are added to the drive system to ensure more convenient and flexible
installation.

9. Frequency conversion system (optional)
a. Floor selecting function
b. Precise distance for stopping at a layer
c. Protection of gears and racks
d. Gear shifts can be settled to control the lifting speed
e. The passenger hoist can start and stop stably at constant speed with little noise.

Building Site Hoist Parameters

Item & Article No.	SC200BG, KP-B11; SC200/200BG, KP-B12
Payload Capacity	2,000KG per Cage
Lifting Speed	0–60 meter/minute.
Max. Lifting Height	450 m
Cage Size (internal)	3.2(Length)1.5((Width)2.35(Height) meter
Motor Power	3x15 KW per Cage
Motor Control	Frequency Control (FC)
Invertor Power (KW)	1*55KW per Cage
Gearbox	PIELI Helical Gearbox
Anti-drop Safety Device	Centrifugal Brake
Power Supply Range	380–500 V, 50 or 60 Hz, 3 Phase
Mast Section	Square Column 6506501508 mm with Bolted Rack
Rack module	8

Vertical Transportation Single Cage 2000KG Building Site Hoist

Product Tags:

2000kg Single Cage hoist

2000kg building hoist

Wholesale Vertical Transportation Single Cage 2000KG Building Site Hoist from china suppliers

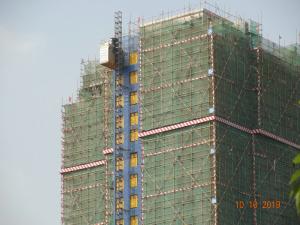

Vertical Transportation Single Cage 2000KG Building Site Hoist Images
